Ceiling Suspended Laminar Air Flow

Price 1 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ceiling Suspended Laminar Air Flow Specification

Air Volume
2000-3500 m/h (depends on model)

Type
Ceiling Suspended Laminar Air Flow Unit

Frame Material
Stainless steel (Grade SS 304 or SS 316)

Lighting
LED light fitting (15-20W, shadow free)

Filter Type
HEPA (99.97% down to 0.3 micron), Pre-filters (G4/EU4)

Dimension (L*W*H)
1200 x 1800 x 800 mm (custom sizes available)

Power Consumption
800-1200 W

Floor
Not Included (Suspended from ceiling)

Weight
Around 120 kg (varies with size and configuration)

Material
Stainless steel

Application
Industrial

Filters
Pre-filter and HEPA Filter

Voltage
220-240 Volt (v)

Door
Not Applicable (Ceiling-mounted open front design)

Feature
High Quality

Thickness
1.2 mm (typical for stainless steel body)

Nozzle
Stainless steel air nozzles (optional)

Air Flow
0.45 0.05 m/s (Velocity of air)

Air Cleanliness Level
Class 100 / ISO 5 (as per ISO 14644-1)

Blower Motor
Dynamically balanced, vibration-free operation

Display
Digital airflow velocity display

Protection
Safety interlocks and overcurrent protection

Noise Level
< 65 dB

Surface Finish
Matt / Satin polish

Operation
Continuous duty

Control Panel
Microprocessor-based with speed and lighting control

Installation Height
Typically 7-8 feet from floor

Ceiling Suspended Laminar Air Flow Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Ceiling Suspended Laminar Air Flow

Ceiling-suspended laminar airflow systems are designed to provide a controlled, unidirectional airflow in cleanrooms and other controlled environments. Here are some specifications

Key Features

Airflow Pattern Laminar airflow

Filter Type HEPA High Efficiency Particulate Air filters, often with a minimum efficiency reporting value of 17 or higher

Suspension System Typically suspended from the ceiling using robust brackets or hangers

Performance Specifications

Air Change Rate Varies depending on the application, but often ranges from 20-100 air changes per hour

Particle Count Meets or exceeds ISO 14644-1 Class 4 or better, depending on the application

Noise Level Typically 50 dBA, depending on the design and application

Design and Materials

Frame Material Often made from stainless steel, aluminum, or other durable materials

Panel Material Typically made from stainless steel or other easy-to-clean materials

Lighting Options May include integrated lighting, such as LED strips or panels

Applications

Cleanrooms Used in various industries, including pharmaceuticals, biotechnology, and electronics

Operating Theaters Provides a sterile environment for surgical procedures

Laboratories Used in research and testing facilities to minimize contamination

Certifications and Compliance- ISO 14644-1 Meets or exceeds standards for cleanrooms and controlled environments

GMP Compliant with Good Manufacturing Practice guidelines for pharmaceutical and biotechnology applications

Other certifications: May include compliance with local or industry-specific regulations and standard

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Laminar Air Flow Category

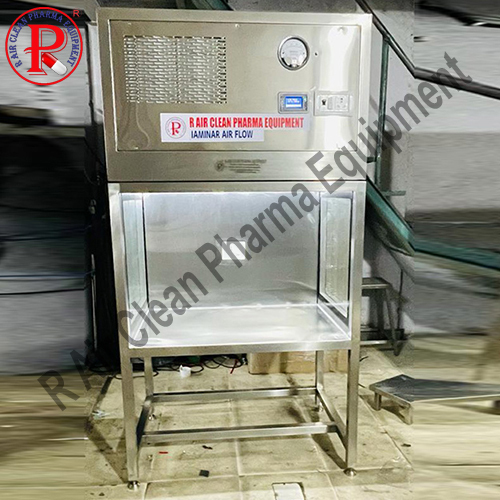

Stand Mounted Laminar Air Flow
